Brakes

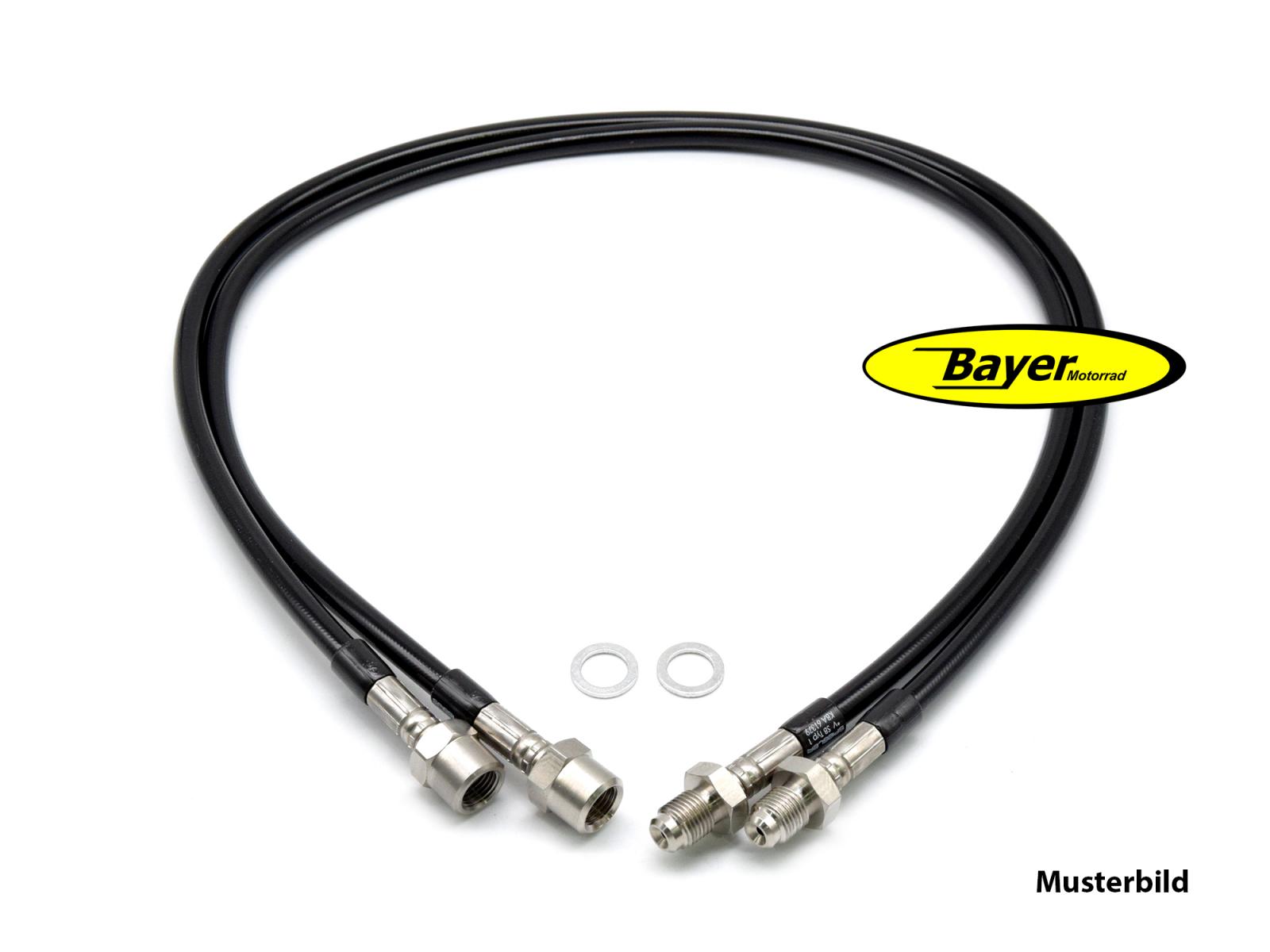

Steelbraided Brakeline (2-piece), single disc brake, BMW R45 R65, 78 - 08/81, for handlebars high
For BMW R45 R65 78-08/81 - for handlebars high
For single disc brake
2 lines - upper line is 24cm - Connection:
Top = inside and
bottom = external thread
Better pressure point and braking power (with ABE).
Illustration similar
Available as:
- Steel mesh is not covered
- Clear coated
- Black coated
click on the field SHOW VARIANTS
Art.No.: 34.2F.500

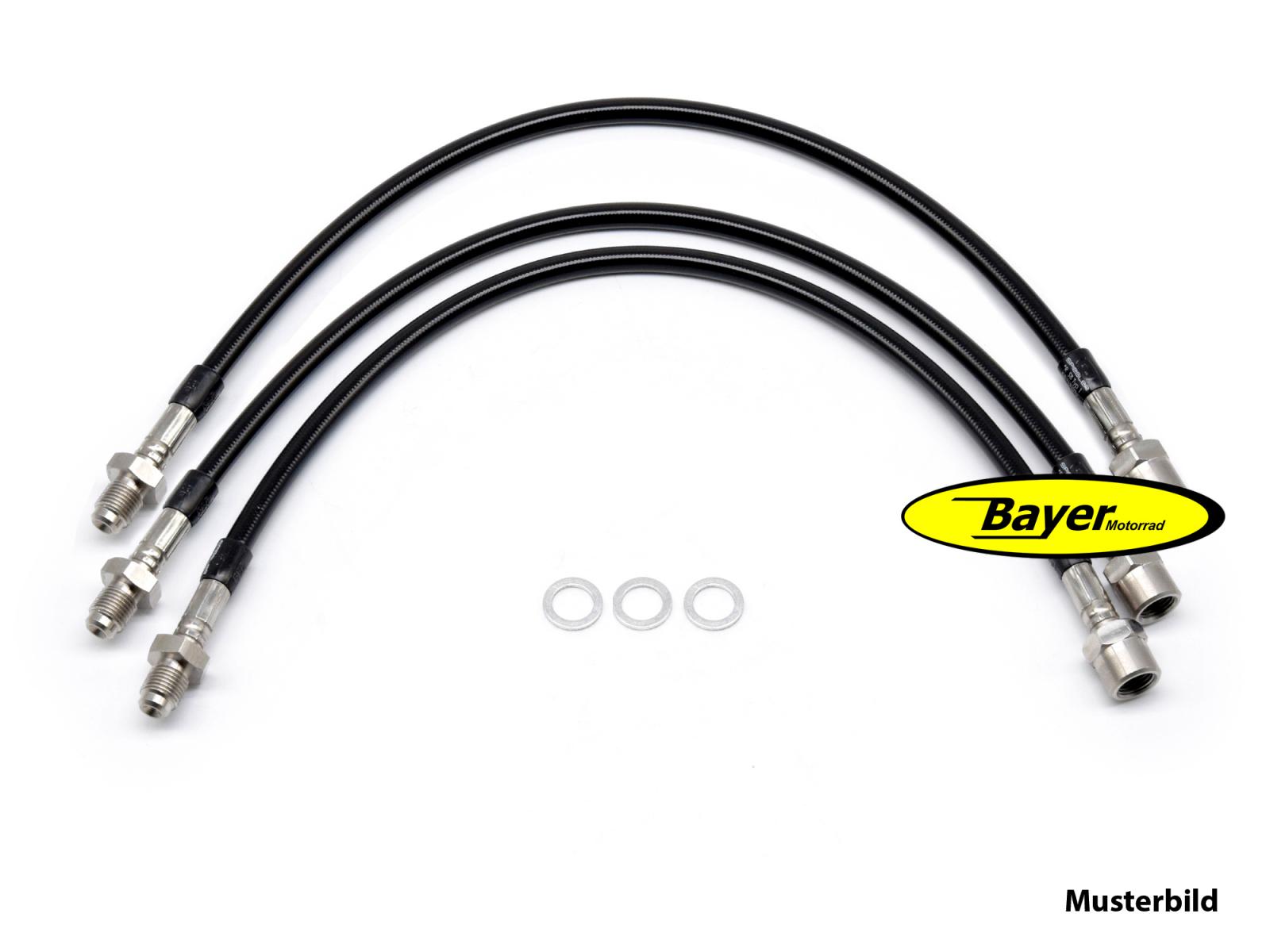

Steelbraided Brakeline (3-piece), BMW R45 R65 for handlebars flat ,double disc brake, Year 78-08/81
Steelbraided Brakeline (3-piece), BMW R45 R65 for handlebars flat ,double disc brake, Year 78-08/81
BMW R45 R65 for handlebars flat, Year 78-08/81
For double disc brake
3 lines - upper line is 15cm
Connection: Top = inside and
bottom = external thread
Better pressure point and braking power (with ABE).
Illustration similar
Available as:
- Steel mesh is not covered
- Clear coated
- Black coated
click on the field SHOW VARIANTS
Art.No.: 34.3F.502
Steelbraided Brakeline (3-piece), BMW R45 R65 for handlebars high ,dual disc brake, Year 78-08/81
BMW R45 R65 for handlebars high, Year 78-08/81
For dual disc brake
3 lines: upper line is 30 cm
Connection: Top = inside and
bottom = external thread
Better pressure point and braking power (with ABE).
Illustration similar
Available as:
- Steel mesh is not covered
- Clear coated
- Black coated
click on the field SHOW VARIANTS
Art.No.: 34.3F.500
Steelbraided Brakeline (2-piece), BMW R45 R65 for handlebars flat ,single disc brake, Year 09/81 - 84
BMW R45 R65 for handlebars flat, Year 09/81 - 84
For single disc brake
2 lines
Upper line is 30cm -
Connection above: ring connection 20 degrees
Connection below: straight ring connection
Better pressure point and braking power (with ABE).
Illustration similar
Available as:
- Steel mesh is not covered
- Clear coated
- Black coated
click on the field SHOW VARIANTS
Art.No.: 34.2F.535
Steelbraided Brakeline (2-piece), BMW R45 R65 R65 LS - Handlebar high, single disc brake, 09/81-84
BMW R45 R65 R65LS
Handlebar high 09/81-84
For single disc brake
2 lines:
Upper line is 37cm -
Connection above: ring connection 20 degrees
Connection below: straight ring connection
Better pressure point and braking power (with ABE).
Illustration similar
Available as:
- Steel mesh is not covered
- Clear coated
- Black coated
click on the field SHOW VARIANTS
Art.No.: 34.2F.537
Steelbraided Brakeline (3-piece), BMW R45 R65 for handlebars flat, dual disc brake, Year 09/81 - 84
BMW R45, R65 for handlebars flat,
Year 09/81 - 84
For dual disc brake
3 lines - upper line is 26cm - Ring connection 20 degrees on both sides
See picture 2
Better pressure point and braking power (with ABE).
Illustration similar
Available as:
- Steel mesh is not covered
- Clear coated
- Black coated
click on the field SHOW VARIANTS
Art.No.: 34.3F.534
Steelbraided Brakeline BMW R45 R65 R65 LS - Handlebar high, double disc brake, 81-84
BMW R45 R65 R65LS Handlebar high 81-84
3 lines - upper line is 37cm
Ring connection 20 degrees at the top
and below ring connection straight.
Better pressure point and braking power (with ABE).
Illustration similar
Available as:
- Steel mesh is not covered
- Clear coated
- Black coated
click on the field SHOW VARIANTS
Art.No.: 34.3F.536
Brake light switch, long, hydraulic for ring eye, BMW universal
Brake light switch hydraulic for two brake line with ring eye incl. 3 gasket rings
universal
M10x1.00
Art.No.: 34.00.100
Brake light switch, short (set), hydraulic for ring eye, BMW universal
Brake light switch hydraulic for one brake line with ring eye incl. 2 sealing rings
universal
M10x1.00
Art.No.: 34.00.098
Double Hollow bolt,(set) long
Art.No.: 34.00.099
Hollow bolt (Set), short
Art.No.: 34.00.097
Brakelight Switch /6+/7 ,R45/65
fits BMW R75/6 R90/6 R60/7 R75/7 R80/7 R90S R80 R100/7 R100S R100RS R100RT
up to 09/1980
R45 R65 1978-09/1980
for comparison 61311244334
Art.No.: 61.31.687
Cover for Brakecaliper ATE BMW R45/65
Art.No.: 34.11.067
Universal hose bracket, BMW R2V R4V K2V K4V
Universal hose bracket for brake hose or cables
Lengh 183mm
wide 10mm
For
R45 R65 R65LS
R50/5 R60/5 R75/5 R60/6 R75/6 R90/6 R90S R60/7 R75/7 R80/7 R80RT R80 R100/7 R100S R100RS R100RT R100CS
R65GS R80G/S R80ST
Paralever models R80GS R100GS R80GS PD R100GS PD R80R R100R R100R Mystik R80GS Basic
Monolever models R65 R80 R80RT R100RS R100RT
K75 K75C K75/2 K75S K75RT
K100 K100/2 K100RS K100RT K100LT
K1 K100RS16V K1100LT K1100RS
K1200RS K1200GT K1200LT
BMW R850R R850GS R850RT R1100GS R1100RS R1100R R1100RT R1100S R1150GS R1150R R1150RS R1150RT R1200C R1200CL.
Art.No.: 73.00.266
universal hose and cable clip, BMW R2V R4V K2V K4V
universal hose and cable clip
Diameter 16.7mm for 6 holes
For BMW
R45 R65 R65LS
R50/5 R60/5 R75/5 R60/6 R75/6 R90/6 R90S R60/7 R75/7 R80/7 R80RT R80 R100/7 R100S R100RS R100RT R100CS
R65GS R80G/S R80ST
Monolever models R65 R80 R80RT R100RT R100RS
Paralever models R80GS R100GS R100GS PD R80R R100R R100RMystik R80GS Basic Paralever
R850GS R1100GS R850R R1100R R1100RS R1100RT R1100S
R1150GS R11500RS R1150RT R1150R R1150Rockster R850C R1200C
K75 K75/2 K75C K75RT K75S
K100 K100/2 K100RS K100RT K100LT
K1 K100RS4V K1100RS K1100LT
K1200RS K1200LT K1200GT
Art.No.: 73.00.265
Brake lever Stainless Steel up to 09/80
fits BMW up to 09/1980 BMW R45 R65 R50/5 R60/5 R75/5 R60/6 R75/6 R90/6 R90S R60/7 R75/7 R80/7 R80 R100/7 R100S R100RS R100RT
For comparison 35-21-1-230-308
Art.No.: 35.21.308
Brake lever Stainless Steel from 09/80 up
fits BMW from 09/1980 up R45 R65 R65LS R80RT R80 R100/7 R100RS R100RT R100CS R80G/S R80ST R65GS R65 Monolever R80GS R100GS R80/100GSParis Dakar R80R R100R R100RMystik R80GS Basic
For comparison 35-21-1-239-078
Art.No.: 35.21.078
O-Ring for brake cam,10x2, BMW R2V and K75 models
O-Ring for brake cam - Rear wheel brake 10x2
You need 2 pieces!
BMW
R45 R65 R65LS, 09/80-09/84
R80RT R80 R100/7 R100S R100RS R100RT R100CS from 09/80 - 09/84
R80G/S R80ST up to 09/83
R65 R80 R80RT R100RT R100RS Monolever up to 08/89
K75, K75C
for comp: 07119906328
Art.No.: 35.21.604
